“These bikes are shipped unassembled. Bikes should be assembled by an authorized bicycle retailer.”
- Over-delivers as skills evolve.
- High performance, tunable suspension.
- Long-travel droppers and generous standover.
- Refined design and expanded size range.
- Ride Aligned™ Design System & personalized setup.

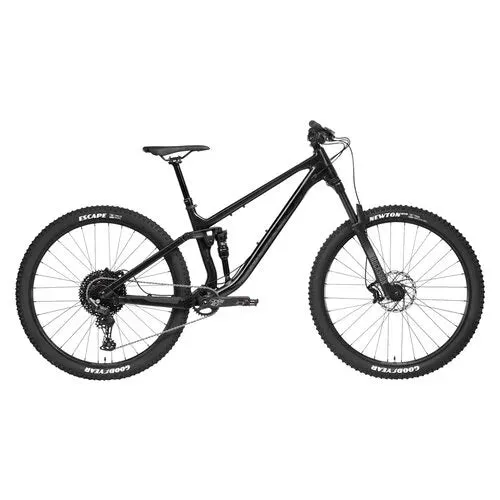

SPECIFICATIONS
FRAME – 6061 Alloy, 130mm of travel
FORK - RockShox Recon Silver RL, 140mm Travel , 42mm Offset
REAR SHOCK - X-Fusion 02 Pro R, Custom Tune, 210x50mm
FRONT WHEEL – Bear Pawls Sealed Bearing, 15x110mm Boost, 6 Bolt with Stan's Flow D, 29", 32H rim
REAR WHEEL – Bear Pawls Sealed Bearing, 12x148mm Boost, HG, 6 Bolt with Stan's Flow D, 29", 32H rim
FRONT TIRE – Goodyear Newton 2.4", Folding
REAR TIRE – Goodyear Escape 2.35", Folding
CRANKSET – FSA Comet 1X DM, 30T, 170mm (S), 175mm (M - XXL)
CHAINRING – 30T
BOTTOM BRACKET – FSA MegaExo, BSA Threaded
REAR DERAILLEUR – Shimano Deore RD-M5100, 11-speed
SHIFT LEVER – Shimano Deore SL-M5100
CASSETTE – Shimano Deore CS-M5100, 11-51T, 11-speed
CHAIN – KMC X11
FRONT BRAKE - Tektro HD-M535, 4 Piston, Organic Pads, Tektro TR180-22, 180mm
REAR BRAKE - Tektro HD-M535, 4 Piston, Organic Pads, Tektro TR180-22, 180mm
HANDLEBAR – e*thirteen, 800mm, 20mm Rise
STEM – 6061 Alloy, 40mm Length, 35mm Clamp
SEATPOST – SDG Tellis Dropper, 34.9mm, 150mm (S), 170mm (M, L), 200mm (XL, XXL)
SADDLE – Norco Trail
